Structor — Operator Manual

Quickstart

sudo apt install ./structor_0.11.0_amd64.deb
structor

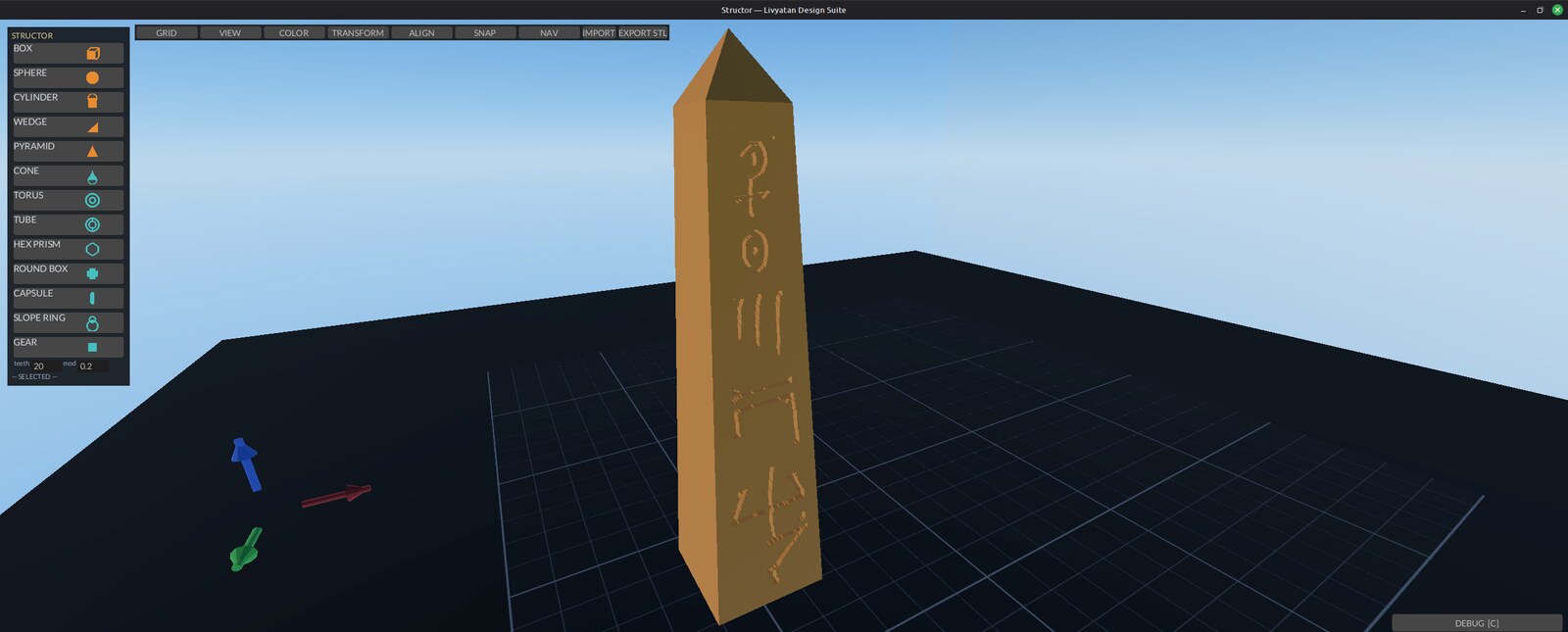

Click a palette button (top-left) — BOX / SPHERE / CYLINDER / WEDGE / PYRAMID — to drop a solid on the plate. New parts (and the cube a fresh scene opens with) arrive at one inch, 25.4 mm; GEAR is sized by its teeth and module. Left-drag moves it; rings rotate; grab the bounding-box handles to scale (corners = uniform, faces = one axis). EXPORT STL writes the scene to STL. SAVE (Ctrl+S) writes a .SigN file, OPEN (Ctrl+O) loads one — both through the file dialog, default folder ~/Structor.

What it is

Structor is the design module of the Livyatan Design Suite: a sovereign, local-first CAD program in Rust on fyrox. It is an alternative to online cloud-based CAD platforms — drop primitive solids on a build plate, drag/rotate/scale them with gizmos, mark negatives as holes, group and boolean-merge, then export the resolved solid to a watertight STL. No browser, no cloud, no account, no network. Everything runs on the local machine.

The scene is a tree of shapes that maps 1:1 onto a JSON-CSG grammar, so a saved .SigN file is a readable spec, not an opaque blob. Boolean preview and merge use the manifold engine — the same backend OpenSCAD uses — so what you preview is what the export produces.

The installed binary is /usr/bin/structor. 85 in-crate tests (cargo test); the camera/spacemouse canon tests live in the vendored chimaera crate.

Why the name

Structor is Latin for builder — the worker who raises the structure, and the root the word “structure” itself grew from. In Rome a structor was the tradesman on the wall, not the patron with the drawings: the one whose hands had to make the plan true. A CAD module that exists to design real parts for a real shop takes the builder’s name, not the architect’s.

Features

• Palette primitives — BOX, SPHERE, CYLINDER, WEDGE, PYRAMID spawn at the nearest free grid cell; shape-glyph icon buttons.
• SCAD template shapes — CONE, TORUS, TUBE, HEX PRISM, ROUND BOX, CAPSULE, SLOPE RING, GEAR (real computed involute flanks; teeth/module/face-width inputs — same module + different teeth = gears that mesh). Shapes are built natively in-process (no external programs) and land as grab-editable meshes.
• Gizmos — move arrows, rotate rings (22.5° snap with degree compass), bounding-box scale handles: 8 corners = uniform, 6 faces = single axis, opposite point anchored, Esc restores exactly.
• Multi-select — Shift+click or Ctrl+click builds a set; Ctrl+A selects all; the set body-drags rigidly with the gizmo at the centroid (move only).
• Groups and merge — Ctrl+G: solids-only = logical group; solid+hole = applies the boolean into one merged part (manifold CSG — OpenSCAD’s own engine). Ctrl+U ungroups/un-merges. Ctrl+W welds any 2+ selected parts into one polyhedron regardless of hole mix. Non-manifold parts fail LOUD (“MERGE FAIL: n part(s) not manifold”), never silently dropped.
• Holes — H toggles solid↔︎hole; P previews the whole-scene boolean non-destructively.
• Snap — grid snap (GRID picker .1/.25/.5/1/5), SMART surface snap (parts ride up onto parts), feature-point snap (corners/face-centers/cap-cardinals, Ctrl suppresses), and Pin Snap: armed mode places exact operator-chosen surface points that persist in the file and ride transforms.
• Color — own-drawn HSV color wheel + value bar, PAINT arm mode, 8-preset row; colors persist in .SigN.
• Mirror — MIR X/Y/Z in the TRANSFORM menu, about combined-bounds center.
• Align — X/Y/Z × min/mid/max grid with multi-selection, against combined bounds or a picked reference part.
• Undo/redo — snapshot history, checkpoint at every mutation; UNDO / REDO buttons carry the depth, Ctrl+Z / Ctrl+Y.
• Parts outliner (2026-09-05) — the list under the palette: one row per part, the dot hides/shows it (same as HIDE), the name selects it.
• Type on spawn — a palette click leaves the keyboard in the new part’s first dimension field: 50 Tab 20 Tab 3 Enter.
• Title bar — Structor — bracket.SigN *, the star while unsaved. Closing with unsaved changes writes the autosave first, then asks whether to save to the scene’s file.
• REST — drops the selection’s base onto the plate; with two parts picked the last-clicked one stacks on the other.
• FIT ALL (H with nothing selected) — frames every part; Home is still the home view. MEASURE — click two points on parts, read the distance (and the X/Y/Z legs) on the status line; Esc exits. RECENT — the last five scenes plus the autosave. UNITS on the toolbar — the inspector, readout and MEASURE follow it (rotations stay degrees). The status line reads the selection (BOX 3 · 25.40 × 25.40 × 25.40 mm · 2 hidden), the part under the cursor lights up, and the wheel zooms toward the cursor.
• Look (2026-09-05) — Solarized dark is the suite palette (every module, one shared crate); toolbar faces carry the verb only, the chord and the sentence are in the hover tooltip; the toolbar centres on the window; the size/position inspector sits on the right; every shape is on the palette (no MORE drawer) with a rendered icon of the part; the colour wheel paints the selected part live; a fill light and ambient lift keep the shadow side readable; the shop backdrop’s aisle runs straight behind the plate.
• PLATE clear keeps the grid (2026-09-05): the grid is its own lines-only sheet when the plate is hidden. HOME and FIT ALL always return the camera from a SpaceMouse fly to orbit (the “zoom won’t re-lock” report).
• Photo domes — SHOP / HILLS / SPACE in the VIEW menu are the older backdrops: an equirect panorama on a sphere around the plate, self-lit, the ground slab hidden while one is up. Where the sphere sits relative to the plate is the operator’s placement (MAGIC CARPET / BG LEVEL below); the shipped defaults are the numbers placed by the author on 2026-09-05.
• Text + / Text − — UI text scale for every Livyatan module, saved to ~/.config/livyatan/ui-scale; restart to apply.
• The backdrop is a level, the plate is the ship (2026-09-05). The backdrop sphere has a full placement — position and yaw/pitch/roll — around the plate. MAGIC CARPET (DEBUG pane) hands the SpaceMouse to the backdrop: tilt = glide it forward/back and sideways, push/pull = up/down, twist = yaw, Shift+tilt = pitch/roll, Alt = fast. VIEW → BG LEVEL does the same without the puck (FWD BACK LEFT RIGHT UP DOWN, YAW PITCH ROLL, RESET) and shows the live numbers. The placement locks per backdrop to ~/.config/structor/backdrop.json when the window closes (and when the carpet is switched off) and comes back next launch; SIG_BG_X/Y/Z/YAW/PITCH/ROLL set the launch defaults. Copy/paste with Ctrl+C/Ctrl+V.
• Import — STL (binary+ASCII) and OBJ via the IMPORT button (zenity dialog) or SIG_IMPORT=<path> at launch; meshes are welded, normalized, and grab-editable; imported-mesh dims (X/Y/Z, display order — 2026-08-31) live in the inspector and are per-axis (2026-09-04): typing W, H or D scales only that axis, the other two hold, and the part’s pins ride the same scale.
• Export — EXPORT STL via zenity save dialog.
• Save/load — SAVE / Ctrl+S writes .SigN (JSON-CSG: units, solids, colors, pins, groups, fab tags) through a save dialog the first time and silently to the same file after; OPEN / Ctrl+O loads one (undoable). Default folder ~/Structor. SIG_OPEN=<path> still loads at launch.
• Autosave — once a minute, only when the scene changed, to ~/Structor/autosave.SigN; the status line says so. A previous session’s autosave is announced in the DEBUG feed at launch — OPEN it if you need it.
• Hide — HIDE removes the selection (and its group) from the viewport and from picking; SHOW ALL restores. Hidden parts stay in the tree, the P preview and every export — hiding is a view, not a delete.
• Z datum — the inspector’s Z row is the part’s BASE, so Z = 0 rests it on the plate (the centre is what moves; the ruler’s Z leg reads the same base).
• Environments — VIEW menu. SHOP 3D (the launch view), HILLS 3D and SPACE 3D are levels: real geometry at 1 mm units — a 30 m shop bay with the build plate lying on a granite surface-plate inspection bench and a bridge crane under the trusses, open ground under the hills sky, a station bay with a planet through the hatch — so the view keeps true perspective from any angle. SHOP / HILLS / SPACE are the older skydome wallpapers. BG LEVEL / MAGIC CARPET move whichever is up. Stay inside a level’s walls: orbiting out past them shows the sky through the back of the wall.
• SpaceMouse — direct hidraw driver (no daemon), full 6-axis nav with the CHIMAERA shared-feel system: every sign/source/sensitivity is user data in ~/.config/structor/nav.json, edited live in the NAV panel.
• Wheel/pan canon — all wheel and pan input routes through one seam each, ground-truthed to operator hands (scroll up = camera away; grab-the-world pan, correct at every yaw).
• Attitude triad — lower-left mini axes glued to the camera; click aligns the view down that axis, re-click flips sides.
• Z-up display language — every UI surface (inspector, ruler, menus) speaks Z-up like a machinist expects; the scene stays Y-up internally.

Using it

Place and edit solids. Click a palette button; the part lands on a free grid cell. Click to select (repeat-click cycles overlapping parts). Left-drag moves on the workplane with grid + surface snap; arrows nudge by the grid step (Shift ×5, Ctrl+Shift+Up/Down raises/lowers). Type exact values in the left inspector; Enter commits. Drag a ring to rotate (compass shows the snapped angle; ROT° box in TOOLS applies typed degrees). Drag a corner handle for uniform scale, a face handle for one axis — it grows toward you, Esc puts everything back. T opens the TOOLS panel: GRID step, TRANSFORM (scale/rotate ±90°/mirror), ALIGN, SNAP, colors, backdrops.

Booleans. Select a part, press H to mark it a hole. P previews the cut without committing. Select the hole plus its solids and Ctrl+G to apply the boolean — the result is one merged, still-editable part; Ctrl+U brings the sources back. Ctrl+W welds any multi-selection into one part in a single stroke.

Save and export. SAVE / Ctrl+S writes .SigN (dialog on the first save, default ~/Structor/, then silently to that file); OPEN / Ctrl+O loads one. EXPORT STL in the toolbar opens a save dialog (defaulting to ~/Desktop) and writes the boolean-resolved solid — exactly what the P preview shows — as binary STL. Any part that is not manifold is named in the status line and excluded from the merge rather than silently dropped.

Navigate. Right-drag or left-drag empty space = orbit. Middle-drag = pan (the scene follows the cursor). Wheel = zoom (scroll up backs the camera away). WASD pans the view. Home (or H with nothing selected) = home view. With the SpaceMouse: tilt = fly, push/pull = lift, twist = yaw. Hold Shift for the attitude layer — tilt L/R = roll, tilt F/B = pitch, fly gated off. Hold L-Alt to boost fly speed (SIG_FLY_BOOST, default 6×). Left puck button = home.

The NAV panel. If any axis feels backwards, don’t relaunch with env flips — open the NAV panel and fix it there: per-function sign flips, gesture-source reassignment, puck sensitivity, fly speed, and the mouse feel block (orbit/zoom/ pan sens + direction). Every click writes ~/.config/structor/nav.json. Load order: baked default ← nav.json ← SIG_* env (env wins, as launch trim).

The DEBUG pane. Edge tab or C opens it; drag the left grab bar to resize. The feed (newest first) records every status transition — imports, exports, merges, welds — and is copyable with Ctrl+C. UNITS toggles mm/in display.

How it connects

• chimaera (chimaera/, vendored crate) — the camera, interaction-math, and spacemouse crate. Nav canon tests live there; edit viewport feel THERE.
• CHIMAERA — the suite-wide nav-feel system (né ARGO, renamed — Linux Foundation holds ARGO®): ~/.config/structor/nav.json carries every sign/source/sensitivity; the mouse block carries orbit/zoom/ pan sens and direction.

Env knobs

Env is launch-time trim; the NAV panel / nav.json is the durable home for feel.

Developer / test knobs

Not for operators — read only by the test suite (cargo test); the shipped binary never consults them.

Known limits

• Plate GLASS finish is not transparent — it renders as a lighter grey; the plate is an opaque box. Pinned; do not expect see-through.
• Grid lines are fuzzy-edged on deep zoom-in (bilinear magnification blur).
• Hover-glow can light an occluded scale glyph (press correctly refuses it).
• Groups don’t survive a .SigN round-trip FIXED 2026-08-31: group ids ride the root groups array (index-aligned like colors/pins/fab) and restore on load.
• SpaceMouse twist adds slight tilt (local-yaw drift); world-Y yaw is a known deferred option.
• Under Xvfb/llvmpipe, colors carry a blue HDR tint — judge color on a real display only.

Shop export (2026-08-31)

The model is truth: dimensioned drawings and machine cut files come FROM the scene (the shop-export design note; first customer = the WHIPS gasifier).

• F cycles the selection’s Pro-Tag: untagged → FLAT → ROLLED → CNC → PRINT → CAST → STOCK. The tag names the toolchain, not the geometry: FLAT/ROLLED → plasma (Hephaestus profile), CNC → Hephaestus STL lane, PRINT/CAST → Jove (CAST scaled up for shrink), STOCK → BOM row only.
• Shift+F steps a ROLLED part’s seam by 45°; Shift+T cycles its plate through stock gauges (16ga → 1/8” → 3/16” → 1/4” → 3/8”). Both announce in the hint line and DEBUG feed.
• Hole boundary JSONs are cut with hephaestus profile --inside (comp rides INTO a hole; without it every hole comes out one kerf oversize) — the manifest says so next to the files. CNC/PRINT/CAST STLs are re-origined: centered on X/Y, resting on Z=0 — they land in a slicer/CAM at the origin, not wherever the part sat on the plate.
• SHOP EXPORT (toolbar) picks a directory and writes shop-<epoch>/: per-part DXF R12 + Hephaestus boundary JSON + letter-landscape SVG sheet (FLAT/ROLLED), per-part STL (CNC/PRINT/CAST), plus bom.csv and MANIFEST.txt. Untagged parts are skipped loudly; geometry errors abort the whole export (no partial truth).
• A part = a group (its holes ride along) or a lone object. FLAT = viewed along local +Y; ROLLED unrolls a developable Cylinder/Cone at mid-surface (defaults: 1/8” plate, seam 0°; edit Rolled params in the .SigN for now). A ROLLED sphere/mesh is a hard error — that’s pressing, not plasma.
• ROLLED ports unwrap exactly: a hole cylinder in the group (radial or angled — its own rotation is honored) is intersected with the mid-surface sample-by-sample and mapped through the unroll isometry onto the flat, so the cut hole comes out round on the finished roll. A port that crosses the seam errors with “change seam_deg”; seam_deg decides where the split lands, so it’s load-bearing once ports exist.
• UNITS: model and cut files are mm; sheets display inches. One conversion, at the machine — every sheet and manifest says so.
• CONE palette button now spawns the parametric cone/frustum (H/R1/R2 in the inspector; R2=0 = full cone) — required for rolled-frustum patterns.

Queued

Not built yet. Listed so nobody mistakes them for missing bugs.

• Regroup-on-load built 2026-08-31 (with the shop-export lane).
• Group rotate/scale (multi-selection gizmo is move-only today).
• In-app .SigN file-open picker built 2026-09-05 (OPEN / Ctrl+O); BG LEVEL numbers mirrored into the panel.
• Hidden parts are session-only (not saved in .SigN); Ctrl+A still selects them.
• Sharp grid lines at magnification (nearest-neighbour / real line geometry).
• Shift-on-face-handle = uniform scale; hot-amber handle visibility pass.
• World-Y yaw option for the SpaceMouse twist drift.
